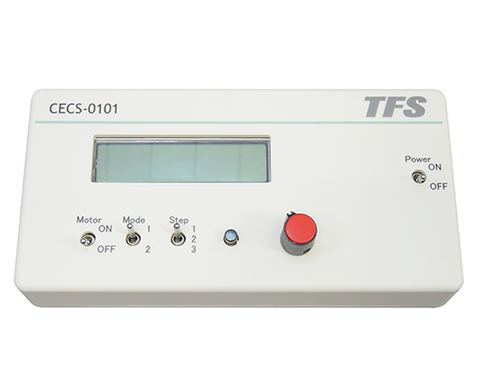

1. Controller designed for the 6-Channel Pumps (Stepper Motor Type).
2. Flow rate, direction of rotation, and micro-steps can be set to control the pumps.
   (Connection up to two pumps, with simultaneous operating conditions)
3. Calibration mode will allow the flow rate to be calibrated from the actual measured flow rate of the pump.

Note: Details such as specifications, etc., may be changed without notice.

Please feel free to contact us for more details about this controller for the 6-Channel (Stepper Motor Type).

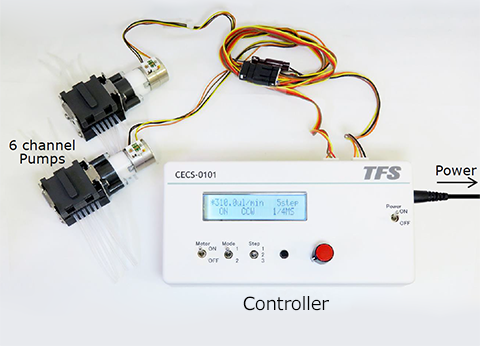

EXAMPLE OF CONNECTIONS

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: A separate connector is required to connect the connector cable included with the controller to the 6-channel pump. (6-channel pumps with connectors are also available, so please contact us for details.)

SPECIFICATIONS
