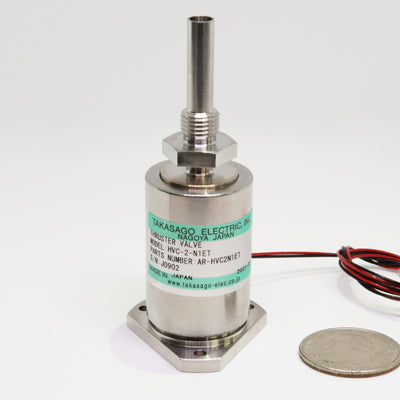

High Pressure Solenoid Valve - HVC Series

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

Stainless Steel Valve
For Satellite Propulsion Systems

  1. 2.8 MPa pressure rating.
  2. Frictionless moving core.

Please feel free to learn more about our other products that are similar to this valve:

  1. High Pressure Ultra-Small Solenoid Valve - HVA/HVAL Series
  2. High Pressure Ultra-Small Solenoid Valve - HVD/HVDL Series

Please feel free to contact us to discuss more details about the HVC series.

Note: Details such as specifications, etc., may be changed without notice.

CASE STUDY

The HVC valve has passed the qualifications for 2nd-RCS on the JAXA’s EPSILON launch vehicle. Please feel free to read more about this at the link below:

  1. Case Study - HVC Series

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number HVC-2-N1FT-7
Outer Dimensions Dia. 27 x L 79 mm*2
Type Normally Closed
Port Connection IN: 1/4" Tube
OUT: Flange with O-ring
Orifice（mm） 1.5 mm
Ambient Temperature Range 4 ~ 71˚C*1
Rated Voltage 23.5 ~ 32 VDC
Power Consumption Rated Voltage: 18 W
Holding Voltage: 1.6 W
Operating Pressure 0 ~ 2.8 MPa
Seal Material FKM (Optionally EPDM, FFKM)
Weight 200 g
Notes
CV Value 0.039
Duty Cycle Rated Voltage Intermitten ED: 20%
Maximum On Time: 5 min
Holding Voltage Continuous

Note: Details such as specifications, etc., may be changed without notice.

*1: The temperature range may change depending on the sealing material.

*2: Excluding flange.
