Ultra-Small Peristaltic Pump - BCP/RCP Series [Under Development]

$1,073.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

  1. Miniature-sized and lightweight, suitable for wearable devices.
  2. Pumping as low as few micro litres of drugs including insulin.
  3. The wetted material is only the tubing, and the disposable pump head can be easily removed and replaced.

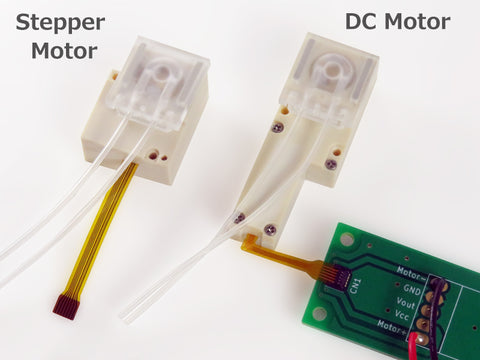

  4. Options for either DC motor(BCP series) or stepping motor(RCP series) that allow for more precise flow control.

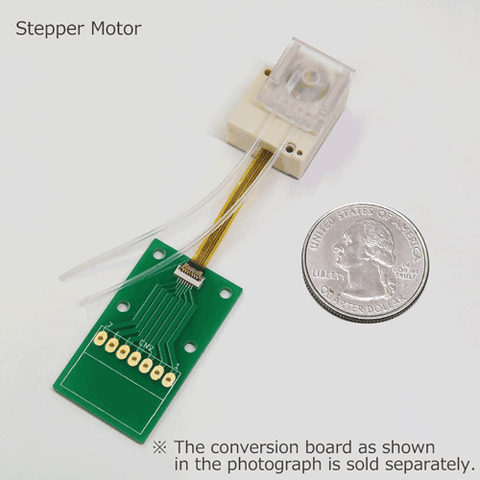

  5. The RCP series requires a driver board and controller separately.
  6. Replacement head pump (TC-10P) is also available.

Note: Details such as specifications, etc., may be changed without notice.

VIDEO OF THE BCP/RCP SERIES


Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number BCP-10E, TC-10P / RCP-10E, TC-10P
Other Wetted Materials Silicone
Tubing Inner Diameter（mm） 0.5 mm
Tubing Outer Diameter（mm） 1.0 mm
Weight Approximately 6 g
Remarks Built-In Rotation Position Sensor
Notes
Model Number BCP-10E, TC-10P   RCP-10E, TC-10P
Motor DC Motor 2-Phase Bipolar Type Stepper Motor
Flow Rate 50 µL/min 50 µL/min*
Rated Voltage 2 VDC 3 VDC
Outer Dimensions 14 x 38 x 13 mm 19.2 x 16.7 x 13 mm

Note: Details such as specifications, etc., may be changed without notice.

*: When the pulse frequency is 1000 pps.
