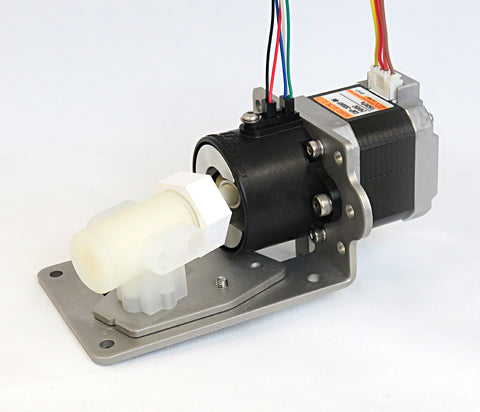

Valveless Ceramic Piston Pump - CAP Series

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

  1. Ceramic piston pump with stepping motor drive and an optical sensor for high repeat precision (CV 0.5%).
  2. Ceramic with excellent abrasion resistance is used to achieve a service life of 10 million cycles* or more.
  3. Wetted parts are made of PVDF, PTFE, and Al2O3 for superior corrosion resistance.
  4. Flow rates of 100 µL, 200 µL, and 300 µL/shot are standard, but customization is available upon request.

VIDEO OF THE CAP SERIES


For more details or questions about this valveless ceramic piston pump, please contact us for more information.

Note: Details such as specifications, etc., may be changed without notice.

*: Based on our experimental conditions.

SPECIFICATIONS

Swipe left to see the remaining contents

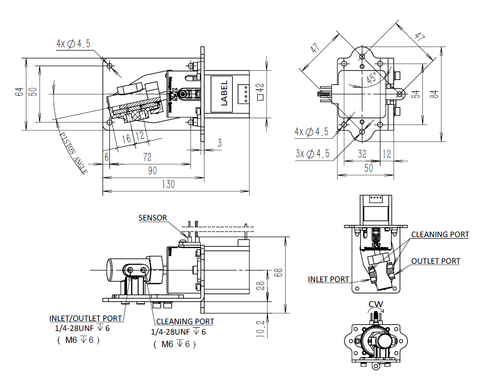

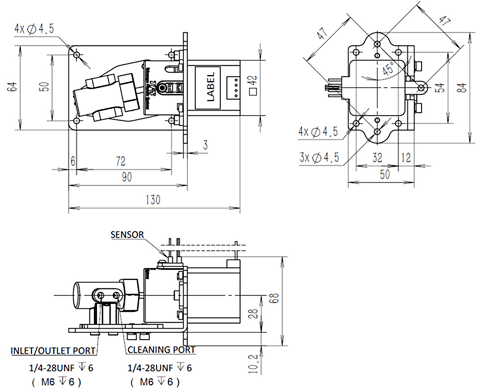

Outer Dimensions 130 x 84 x 68 mm
Motor 2-Phase Bipolar-Type Stepper Motor
Motor Speed Range: 5 ~ 300 RPM
Pump Method Valveless Piston Pump
Port Connection M6 or 1/4-28UNF
Fluid Temperature Range 0 ～ 60°C
Ambient Temperature Range 0 ～ 40°C
Rated Voltage 24 VDC
Body Material PVDF or PTFE
Other Wetted Materials Al2O3

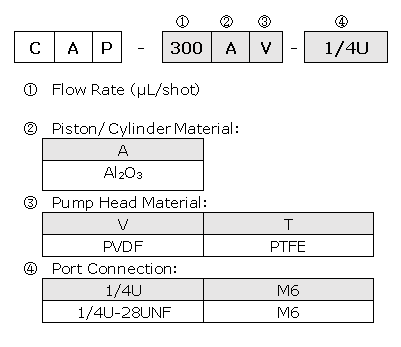

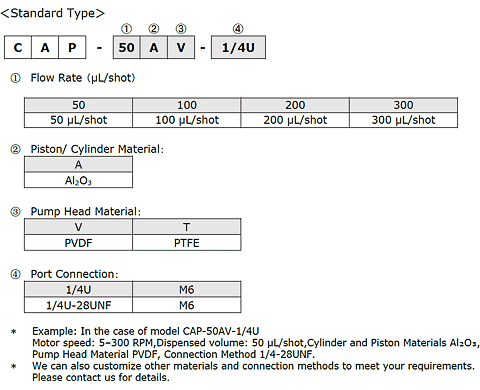

Flow Rate 100 μL/shot, 200 μL/shot, or 300 μL/shot
Discharge Pressure 150 kPa
Repeat Precision CV 0.5%*
Weight Approximately 630 g
Notes

Note: Details such as specifications, etc., may be changed without notice.

*: Tested at 100 RPM, 10 shot no pressure conditions.
