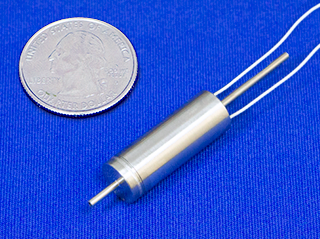

High Pressure Ultra-Small Solenoid Valve - HVD/HVDL Series

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

For Satellite Propulsion Applications

  1. 5.5 or 10 MPa pressure rating.
  2. Compact and lightweight.

Please feel free to learn more about our other products that are similar to this valve:

  1. High Pressure Ultra-Small Solenoid Valve - HVA/HVAL Series
  2. High Pressure Solenoid Valve - HVC Series

Please feel free to contact us to discuss more details about the HVD and HVDL series.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number HVD-2-N1FN / HVDL-2-N1FN / HVD-2-N1FN-3
Outer Dimensions 10 (Diameter) x 55 (Length) mm
Type Normally Closed / Latching
Port Connection 1/16" Tube
Orifice（mm） 0.4 ~ 0.6 mm (Diameter)
Ambient Temperature Range 0 ~ 70˚C*
Rated Voltage 12 VDC
Seal Material FKM (Optionally FFKM)
Weight 14 g
Notes
Model Number HVD-2-N1FN HVDL-2-N1FN HVD-2-N1FN-3
Solenoid Type Normally Closed Latching Normally Closed
Orifice Diameter 0.4 mm 0.6 mm
CV Value 0.0045 0.01
Operating Pressure Range 0 ～ 10 MPa (Inlet Port) 0 ～ 5.5 MPa (Inlet Port)
Holding Voltage 3 VDC N/A 3 VDC
Power Consumption Rated Voltage 11 W 10 W 11 W
Holding Voltage 0.7 W N/A 0.7 W
Duty Cycle Rated Voltage Intermittent
ED: 15%
Maximum On Time: 1.0 s		 Intermittent
ED: 20%
On Time: 0.05 ~ 0.1 s		 Intermittent
ED: 15%
Maximum On Time: 1.0 s
Holding Voltage Continuous N/A Continuous

Note: Details such as specifications, etc., may be changed without notice.

*: The temperature range may change depending on the sealing material.
