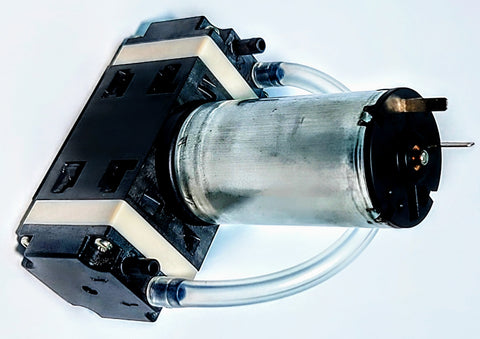

Degassing Pump - D30T Series

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

This degassing pump is specifically designed to eliminate dissolved air bubbles, ensuring accurate measurements in biochemical and immunoassay analyzers. With a high vacuum pressure of -90 kPa, it is also highly effective for sample suction following analysis.

For more detailed information about this degassing pump, including specifications, applications, and customization options, please feel free to contact us. Our team is happy to assist with any inquiries and provide the support you need.

CHART EXAMPLE

Chart Example for D30T

DIMENSIONS

Dimensions for D30T

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: All the values are only for reference and are not guaranteed.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number D30T_0001_D
Motor DC Brushed Motor
Type Degassing Pump
Port Connection Inlet: Hose barb (Tube Retaining Design)
Outlet: Hose barb (Tube Retaining Design)
Ambient Temperature Range 5~50℃
Rated Voltage DC 24V
Flow Rate 3.5 L/min
Weight 210 g
Notes
Vacuum Pressure -90 kPa
Life Expectancy 1,000 H*

Note: Details such as specifications, etc., may be changed without notice.

*: Not a guaranteed value.
