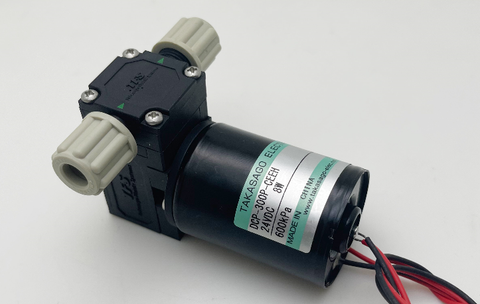

Diaphragm Liquid Pump - DCP-300 Series

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

  1. Typical flow rates of 300 mL/min and operating pressure range of -30 to 600 kPa.
  2. Brushless motors are used for longer life and lower noise than conventional products.
  3. No metal materials are used as wetted parts (see table below). Suitable for a wide variety of fluids.

Note: Details such as specifications, etc., may be changed without notice.

FLOW CURVE (DCP-300P-CEEH)

Flow Curve of Diaphragm Pump - DCP-300

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: All the values are only for reference and are not guaranteed.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number DCP-300P-CEEH
Motor DC Brushless Motor
Port Connection Compression Fitting
(Adaptable Tubing Size: 4 mm (I.D.) x 6 mm (O.D.))
Fluid Temperature Range 0–80°C
Ambient Temperature Range 0–40°C
Rated Voltage 12 or 24 VDC
Power Consumption 8 W
Other Wetted Materials PP or EPDM
Flow Rate 300 mL/min*
Discharge Pressure 600 kPa
Weight 126 g
Notes

Note: Details such as specifications, etc., may be changed without notice.

*: At 0 kPa back pressure.
