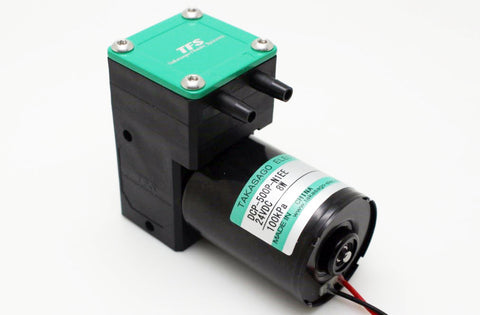

Diaphragm Liquid Pump - DCP-400/500 Series

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

  1. Typical flow rates of 400 or 500 mL/min and operating pressure range of -60 to 100 kPa.
  2. Brushless motors are used for longer life and lower noise than conventional products.
  3. No metal materials are used as wetted parts (see table below). Suitable for a wide variety of fluids.

Note: Details such as specifications, etc., may be changed without notice.

FLOW CURVE (DCP-500P-N1EE(FF) & DCP-400P-N1TG)

Flow Curve of Diaphragm Pump - DCP-500P-N1EE(FF) - DCP-400P-N1TG

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: All the values are only for reference and are not guaranteed.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number DCP-400P-N1TG / DCP-500P-N1EE / DCP-500P-N1FF

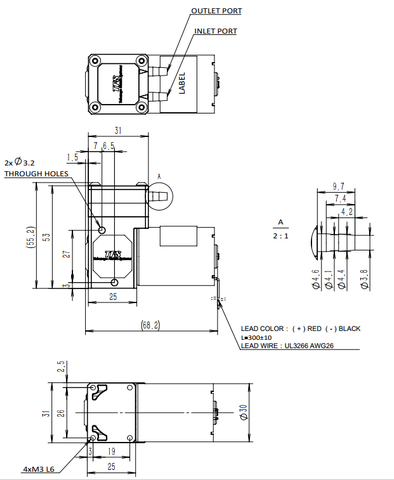

Outer Dimensions 31 × 68.2 × 55.2 mm
Motor DC Brushless Motor
Port Connection Hose Barbs
Fluid Temperature Range 0–80°C
Ambient Temperature Range 0–40°C
Rated Voltage 12 or 24 VDC
Power Consumption 8 W
Other Wetted Materials PP, PTFE, FFKM, EPDM, or FKM
Flow Rate 400 ~ 500 mL/min*
Discharge Pressure 100 kPa
Weight 150 g
Notes
Model Number DCP-400P-N1TG DCP-500P-N1EE DCP-500P-N1FF
Typical Flow Rate* 400 mL/min 500 mL/min
Maximum Vacuum Pressure -60 kPa
Fluid Temperature Range 10 ～ 40 ℃ 0 ～ 80 ℃
Ambient Temperature Range 10 ～ 40 ℃ 0 ～ 40 ℃
Wetted Materials PP, PTFE, and FFKM PP and EPDM PP and FKM

Note: Details such as specifications, etc., may be changed without notice.

*: At 0 kPa back pressure.
