Diaphragm Valve - EXAKN Series [2-way NO / Orifice: 0.8 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView EXAKN Series [2-way NO / Orifice: 0.8 mm] Drawing PDF

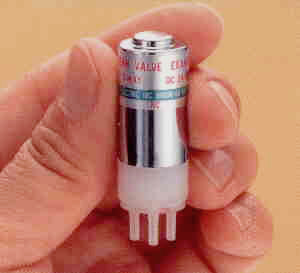

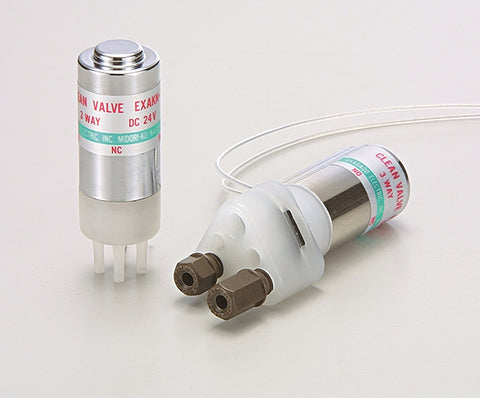

This micro solenoid diaphragm isolation valve, the EXAKN series, is a zero-pumping volume-type of the diaphragm isolation valve. FFKM is used for the seal part, and with this, the valve has an increased sealing ability. The outer dimensions of this valve are very compact at only φ14.0 x H 42.3 mm.

  1. Zero-Pumping Volume-Type

Please feel free to contact us for more details about these valves for more information.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number EXAKN-2F
Outer Dimensions φ14.0 x 42.3 / W18 x L18.6 x H44mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NO
Port Connection M5 or Hose barb
Orifice（mm） 0.8 mm
IN Port Pressure -40~300 kPa
OUT Port Pressure (NC) 0~150 kPa
Fluid Temperature Range 0~60°C
Ambient Temperature Range 0~60°C
Rated Voltage 12 or 24 VDC
Power Consumption 1.2 W
Operating Duration Continuous
Body Material ETFE
Seal Material FFKM
Other Wetted Materials PTFE or PVDF
Notes
Model Number EXAKN-2F-NO EXAKN-2-NO
Port Connection M5 Hose Barb

Note: Details such as specifications, etc., may be changed without notice.
