Fittings for PTFE tubing SM Series [Thread M6]

$0.00

Variation
Quantity

FEATURES / CHARACTERISTICS

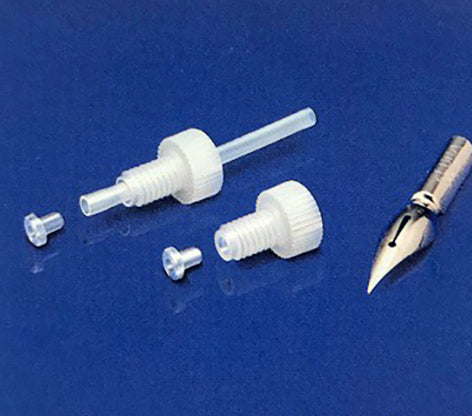

This is a flare type fitting for a flat bottom thread. Simply insert the flange-shaped moulded seal part (Seal Joint) into the end of the tubing for use after enlarging the end of the tubing.

Please click here for information of the flare type.

For the easy setting on Takasago fittings, tube setting tools are available. Please feel free to contact us for the details.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number SM6-1020A / SM6-1030A / SM6-1525A / SM6-2030A
Type Flare type
Port Connection M6
Body Material PVDF
Other Wetted Materials ETFE
Tubing Inner Diameter(mm) 1~2
Tubing Outer Diameter(mm) 2~3
