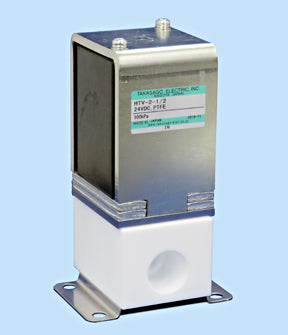

Diaphragm Valve - HTV Series [2-way NC / Orifice: 10.0 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView HTV Series [2-way NC / Orifice: 10.0 mm] Drawing PDF

This 2-way NC solenoid diaphragm isolation valve has a large orifice diameter of 10.0 mm. The PTFE machined diaphragm used for this model has a high chemical compatibility. Please feel free to contact us for more details of this solenoid diaphragm isolation valve, the HTV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number HTV-2
Outer Dimensions W60 x L75 x H124 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection Rc1/2 or Rc3/8
Orifice（mm） 10.0 mm
IN Port Pressure -90~100 kPa
OUT Port Pressure (NC) 0~50 kPa
Fluid Temperature Range 0~60℃
Ambient Temperature Range 0~60℃
Rated Voltage 12, 24, or 90 VDC
100 VAC
Power Consumption 10 W
Operating Duration Continuous
Body Material PTFE
Seal Material PTFE
Notes
Model Number HTV-2-1/2 HTV-2-3/8
Port Connection Rc1/2 Rc3/8

Note: Details such as specifications, etc. may be changed without notification.
