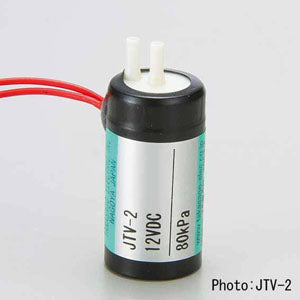

Diaphragm Valve - JTV Series [2-way NC / Orifice: 1.2 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView JTV Series [2-way NC / Orifice: 1.2 mm] Drawing PDF

The JTV series is a miniature 2-way NC elastomer solenoid diaphragm isolation valve. The hose barb connection enables you to connect the silicone tubing directly onto the valve. Please feel free to contact us for more details of this Diaphragm Valve - the JTV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number JTV-2
Outer Dimensions 14.5 x H34.1 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection Hose Barb
Orifice（mm） 1.2 mm
IN Port Pressure 0~80 kPa
OUT Port Pressure (NC) 0~10 kPa
Fluid Temperature Range 0~40℃
Ambient Temperature Range 0~40℃
Rated Voltage 12 or 24 VDC
Power Consumption 1 W
Operating Duration Continuous
Body Material U Polymer
Seal Material FKM
Notes

Note: Details such as specifications, etc. may be changed without notification.
