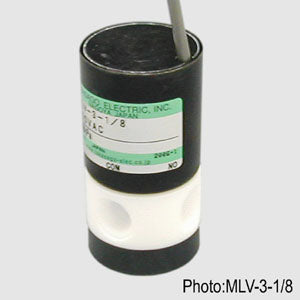

Diaphragm Valve - MLV Series [3-way / Orifice: 2.5 mm / HPVC, PTFE Body]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

The MLV series is a solenoid diaphragm isolation valve with the outer dimensions of just 30.0 x 57.2 mm. The PTFE machined diaphragm of this solenoid valve has high chemical compatibility. The port connection can be selected from the options of M8, 5/16-24UNF, Rc1/8, and 1/8-27NPT. Please feel free to contact us for more details of this solenoid diaphragm isolation valve, the MLV series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MLV-3B-M8
Outer Dimensions 30 x 60 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection M8
Orifice（mm） 2.5 mm
IN Port Pressure -30~200 kPa
OUT Port Pressure (NC) 0~50 kPa
OUT Port Pressure (NO) 0~50 kPa
Fluid Temperature Range 0~50°C
Ambient Temperature Range 0~60°C
Rated Voltage 12 or 24 VDC
Power Consumption 2.3 W
Operating Duration Continuous
Body Material PTFE or HPVC
Seal Material PTFE and FKM
Other Wetted Materials PCTFE
Notes

Note: Details such as specifications, etc. may be changed without notification.
