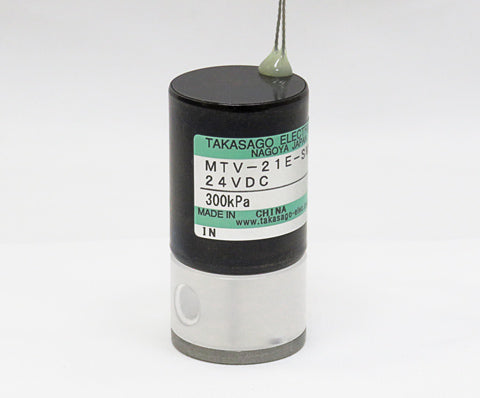

Diaphragm Valve - MTV Series [2-way NC / Orifice: 2.0 mm / PPS Body / Mold Coil]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

This solenoid diaphragm isolation valve has an outer diameter of just 26.0 mm and represents the TAKASAGO brand. A variety of models are available for this valve. The PTFE machined diaphragm has high chemical compatibility. There are a wide variety of valve bodies available such as molded bodies or machined bodies, also threaded port connections or hose barb connections, etc.

Please feel free to contact us for more details about this solenoid diaphragm isolation valve, the MTV series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number MTV-2R
Outer Dimensions 26 x H48.7 mm
Method Solenoid Diaphragm Isolation Valve
Type 2-way NC
Port Connection 1/4-28UNF, M6, or Hose Barb
Orifice（mm） 2.0 mm
IN Port Pressure -90~200 kPa
OUT Port Pressure (NC) 0~100 kPa
Fluid Temperature Range 0~60°C
Ambient Temperature Range 0~60°C
Rated Voltage 12 or 24 VDC
Power Consumption 2.6 W
Operating Duration Continuous
Body Material PPS
Seal Material FKM
Other Wetted Materials PTFE
Notes
Model Number Port Connection Seal Material
MTV-2R-N1/4UF 1/4-28UNF FKM
MTV-2R-NM6F M6 FFKM
MTV-2R-N1/4UG 1/4-28UNF FKM
MTV-2R-NM6G M6 FFKM
MTV-2R-NN3 Hose Barb N3 FKM
MTV-2R-NN3G FFKM
MTV-2R-NN4 Hose Barb N4 FKM
MTV-2R-NN4G FFKM

Note: Details such as specifications, etc. may be changed without notification.
