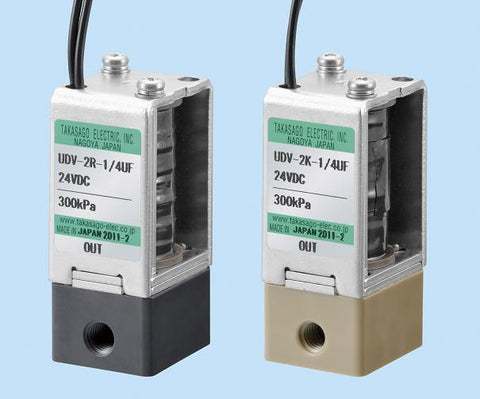

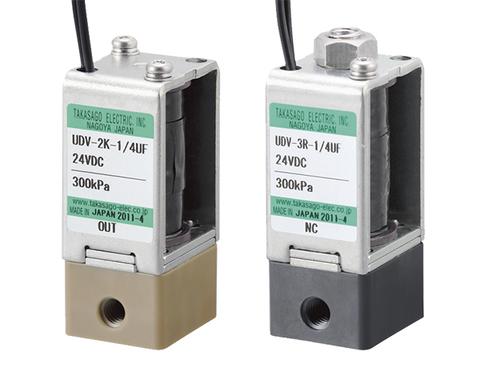

Stainless Steel Valve - UDV Series [2-way NC / High Pressure]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

This solenoid-driven valve is the primary model among our non-diaphragm valves. It is a 2 mm orifice-sized class valve, and both types of a molded plastic body and a stainless steel body are available.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number UDV-2R-M6FH
Outer Dimensions 25 x 22 x 52.2 mm
Method Solenoid Non-Diaphragm Valve
Type 2way-NC
Port Connection M6 or 1/4-28UNF
Orifice（mm） 2.0 mm
IN Port Pressure 0 ~ 600 kPa
OUT Port Pressure (NC) 0 ~ 50 kPa
Fluid Temperature Range 5 ~ 60°C
Ambient Temperature Range 5 ~ 60°C
Power Consumption 3.1 W
Operating Duration Continuous
Body Material PPS or PEEK
Seal Material FKM
Other Wetted Materials K-M31, SUS316WPA, or SUS3
Notes

Note: Details such as specifications, etc., may be changed without notice.
