  • NP Series [Tubing I.D.: 3 mm, O.D.: 5 mm / 3-way]
  • NP Series [Tubing I.D.: 3 mm, O.D.: 5 mm / 3-way]

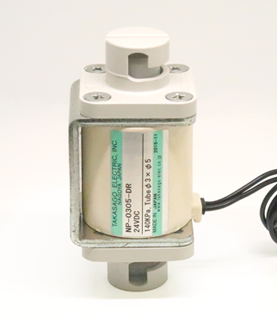

NP Series [Tubing I.D.: 3 mm, O.D.: 5 mm / 3-way]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

The NP series is a solenoid pinch valve and an improved model of the Pinch Valve - PK Series. There is a slit in the tube holder that allows a user to insert tubing from the side of the pinch valve, this makes it more convenient and easy to use.

Please contact us for more details about this solenoid pinch valve, the NP series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number NP-0305-DR-2
Outer Dimensions W44.5 x L36 x H85 mm
Method Solenoid Pinch Valve
Type 3-way
IN Port Pressure 0~50 kPa
Ambient Temperature Range 0~40°C
Rated Voltage 24 VDC
Power Consumption 21 W (inrush), 5.3 W (holding)
Operating Duration Continuous
Tube Material TygonⓇ2001
Tubing Inner Diameter（mm） 3 mm
Tubing Outer Diameter（mm） 5 mm
Notes

*Note: with hit and hold circuit

*Note: Details such as specifications, etc. may be changed without notice.
