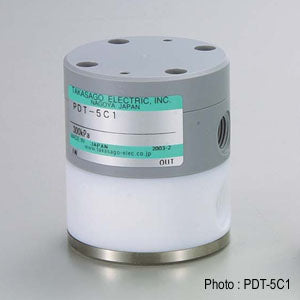

Air Operated Valve - PDT Series [3-way]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView PDT Series [3-way] Drawing PDF

This valve is an air-operated valve with 44.5 x 52.0 mm outer dimensions. The orifice diameter is 4.0 - 5.0 mm. PTFE is the material for the body and seal material, which allows the valve to have high chemical compatibility.

For more details or any questions about this valve, please feel free to contact us for information.

Note: Details such as specifications, etc., may be changed without notice.


We also have a similar product to this air valve, it's called:

  1. Air Operated Valve - PDT Series [2-way NC]

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PDT-4E1
Outer Dimensions φ44.5 x 67 mm
Method Air Operated Valve
Type 3-way
Port Connection Rc1/8 or Rc1/4
Orifice（mm） 4.0 or 5.0 mm
IN Port Pressure 0 ~ 300 kPa
OUT Port Pressure (NC) 0 ~ 150 kPa
OUT Port Pressure (NO) 0 ~ 150 kPa
Fluid Temperature Range 0 ~ 80°C
Ambient Temperature Range 0 ~ 60°C
Body Material PTFE
Seal Material PTFE
Other Wetted Materials PCTFE
Remarks Supply: 300 kPa Air
Notes
Model Number Orifice Port Connection
PDT-4E1 4.0 mm Rc1/8
PDT-5E1 5.0 mm
PDT-4E2 4.0 mm Rc1/4
PDT-5E2 5.0 mm

Note: Details such as specifications, etc., may be changed without notice.
