  • PE Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]
  • PE Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]

PE Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView PE Series [Tubing I.D.: 0.8 mm, O.D.: 2.4 mm / 2-way NC] Drawing PDF

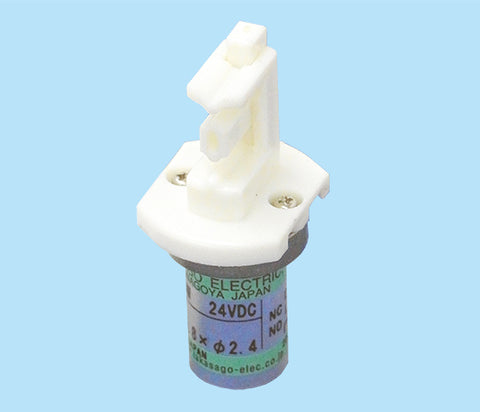

The PE series is the smallest pinch valve in Takasago's product lineup, featuring a compact actuator with a diameter of just 14 mm. This versatile valve is available in three configurations: Normally Closed (N.C.), Normally Open (N.O.), and a dual type (both N.C. and N.O.).

Please feel free to contact us for more details about this miniature solenoid pinch valve, the PE series.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PE-0810NC-3
Outer Dimensions W21 - 39.2 x L26 x H55.1 mm
Method Solenoid
Pump Method Pinch Valve
Type 2-way N.C., 2-way N.O., or 3-way
Operating Pressure Range 0 ~ 100 kPa
Ambient Temperature Range 0 ~ 40°C
Rated Voltage 12 or 24 VDC
Power Consumption 2.8 W
Operating Duration Continuous
Tube Material Silicone
Tubing Inner Diameter（mm） 0.8 mm
Tubing Outer Diameter（mm） 2.4 mm
Notes

Note: Details such as specifications, etc., may be changed without notice.
