Pinch Valve with Easy Tubing Replacement Mechanism

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

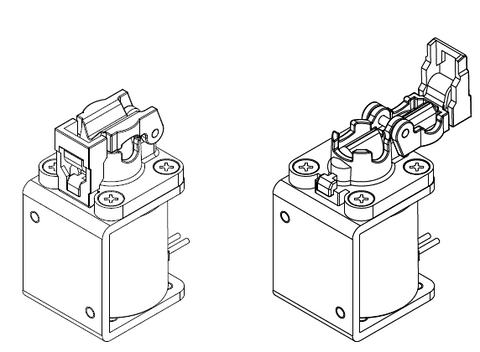

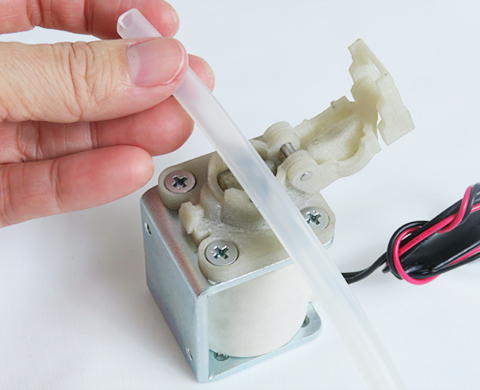

  1. Tube holder can be opened manually for easy tubing replacements.
  2. Ideal for applications with frequent tubing replacements.
  3. Pinch valve can be custom-designed to meet customer tubing requirements.

Please feel free to contact us for more details about this pinch valve with the tubing replacement mechanism.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Method Pinch Valve
Operating Pressure Range 0 ～ 50 kPa*2
Ambient Temperature Range 0 ～ 40℃*2
Rated Voltage 12 or 24 VDC
100 VAC
Power Consumption 10 W
Tube Material Silicone or PharMed®*1
Weight 320 g
Notes
Tubing Size O.D. 4～6 mm
Duty Cycle Continuous Operation

Note: Details such as specifications, etc., may be changed without notice.

*1: "PharMed®" is a trademark of Saint-Gobain Performance Plastics.

*2: Media pressure and compatible ambient temperature is subject to tubing material selected.
