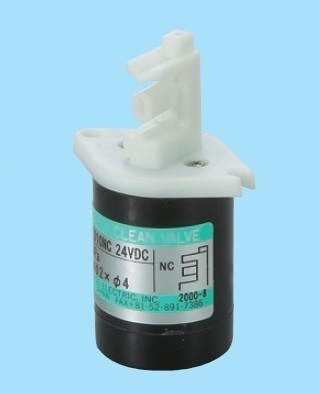

Pinch Valve PM Series [Tubing diameter innner: 0.8 mm outer: 2.4 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

The PM series is a solenoid pinch valve which supports a wide range of tubing materials such as silicone, PharMed and Tygon. This pinch valve can be freely used as an NC/NO type with a single tube or as a Dual type with two tubes. It can also be configured as a 3-way valve by using a Y-shaped fitting.

Please contact us for more details of this solenoid pinch valve, PM series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PM-0815W
Outer Dimensions W39.2 x L26 x H60 mm
Method Solenoid
Type 2way-NC, 2way-NO, 3way
IN Port Pressure 0 ` 150 kPa
Ambient Temperature Range 0 ` 50
Rated Voltage 12VDC, 24VDC, 90VDC, 100VAC
Power Consumption 4.4 W
Operating Duration Continuous
Tube Material Silicone, Pharmed® , Tygon
Tubing Inner Diameter（mm） 0.8
Tubing Outer Diameter（mm） 2.4
