  • PM Series [Tubing I.D.: 1 mm, O.D.: 3 mm]
  • PM Series [Tubing I.D.: 1 mm, O.D.: 3 mm]

PM Series [Tubing I.D.: 1 mm, O.D.: 3 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView PM Series [Tubing I.D.: 1 mm, O.D.: 3 mm] Drawing PDF

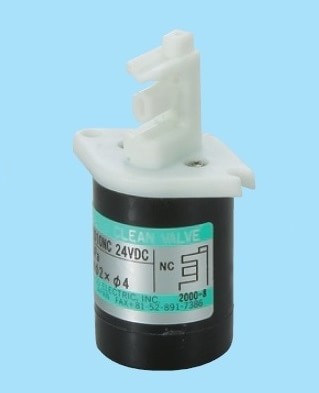

The PM series is a solenoid pinch valve which supports a wide range of tubing materials such as silicone, PharMed??, and Tygon??. This pinch valve can be freely used as an NC/NO type with a single tube or as a Dual type with two tubes. It can also be configured as a 3-way valve by using a Y-shaped fitting.

Please feel free to contact us for more details about this solenoid pinch valve, the PM series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PM-1015W
Outer Dimensions W39.2 x L26 x H60 mm
Method Solenoid
Type 2-way NC, 2-way NO, or 3-way
IN Port Pressure 0~150 kPa
Ambient Temperature Range 0~50°C
Rated Voltage 12 or 24 V DC
Power Consumption 4.4 W
Operating Duration Continuous
Tube Material Silicone, PharMed®, or Tygon®
Tubing Inner Diameter（mm） 1 mm
Tubing Outer Diameter（mm） 3 mm
Notes

*Note: Details such as specifications, etc. may be changed without notice.
