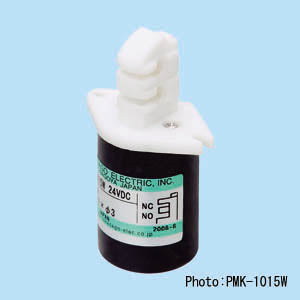

Pinch Valve PMK Series [Tubing diameter innner: 0.8 mm outer: 2.4 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

This PMK series is a PM pinch valve with the tube holding feature.

Please contact us for more details of this solenoid pinch valve, PMK series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PMK-0815W
Outer Dimensions W39.2 x L26 x H61.5 mm
Method Solenoid
Type 2way-NC, 2way-NO, 3way
IN Port Pressure 0 ` 150 kPa
Ambient Temperature Range 0 ` 50
Rated Voltage 12VDC, 24VDC, 90VDC, 100VAC
Power Consumption 4.4 W
Operating Duration Continuous
Tube Material Silicone, Pharmed® , Tygon
Tubing Inner Diameter（mm） 0.8
Tubing Outer Diameter（mm） 2.4
