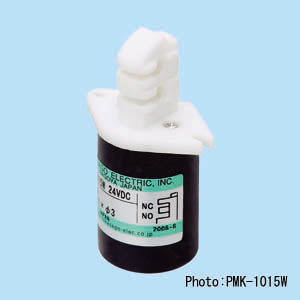

PMK Series [Tubing I.D.: 1 mm, O.D.: 3 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView PMK Series [Tubing I.D.: 1 mm, O.D.: 3 mm] Drawing PDF

This PMK series is a Pinch Valve - PM Series with the tube holding feature.

Please feel free to contact us for more details about this solenoid pinch valve, the PM series.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PMK-1015NC / PMK-1015NO / PMK-1015W
Outer Dimensions W39.2 x L26 x H61.5 mm
Method Solenoid Pinch Valve
Type 2-way NC, 2-way NO, or 3-way
IN Port Pressure 0~150 kPa
Ambient Temperature Range 0~50°C
Rated Voltage 12, 24, or 90 V DC
100 V AC
Power Consumption 4.4 W
Operating Duration Continuous
Tube Material Silicone, Pharmed®
Tubing Inner Diameter（mm） 1 mm
Tubing Outer Diameter（mm） 3 mm
Notes

*Note: Details such as specifications, etc. may be changed without notice.
