  • PSK Series [Tubing I.D.: 1 mm, O.D.: 3 mm]
  • PSK Series [Tubing I.D.: 1 mm, O.D.: 3 mm]

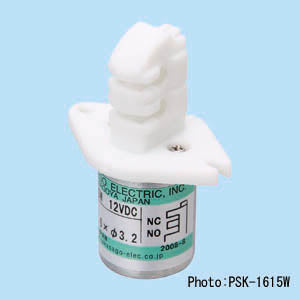

PSK Series [Tubing I.D.: 1 mm, O.D.: 3 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView PSK Series [Tubing I.D.: 1 mm, O.D.: 3 mm] Drawing PDF

The PSK series is the Pinch Valve - PS Series with the tube holding feature. There are three types of this valve: N.C. (Normally Closed), N.O. (Normally Open), and Dual, which has both an N.O. and N.C. side that operates simultaneously.

Please feel free to contact us for more details about this solenoid pinch valve, the PSK series.

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PSK-1015NC / PSK-1015NO / PSK-1015W
Outer Dimensions W39.2 x L26 x H56 mm
Method Solenoid - Pinch Valve
Type 2-way NC, 2-way NO, or 3-way
IN Port Pressure 0~150 kPa
Ambient Temperature Range 0~40°C
Rated Voltage 12 or 24 VDC
Power Consumption 3 W
Operating Duration Continuous
Tube Material Silicone
Tubing Inner Diameter（mm） 1 mm
Tubing Outer Diameter（mm） 3 mm
Notes

Note: Details such as specifications, etc., may be changed without notice.
