Pinch Valve - PW Series [Tubing I.D.: 1.6 mm / O.D.: 3.2 mm]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView PW Series [Tubing I.D.: 1.6 mm / O.D.: 3.2 mm] Drawing PDF

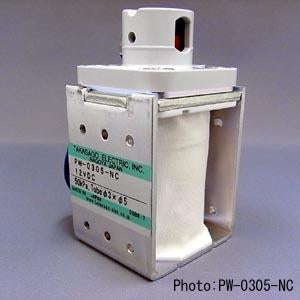

This is the PW series, it is a solenoid pinch valve with an open-framed actuator.

Please feel free to contact us for more details about this Solenoid Pinch Valve - the PW series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PW-1615NC / PW-1615NO / PW-1615W
Outer Dimensions W39.2 x L26 x H54.4-58.4 mm
Method Solenoid Pinch Valve
Type 2-way NC, 2-way NO, or 3-way
IN Port Pressure 0~150 kPa
Ambient Temperature Range 0~50°C
Rated Voltage 3, 12, or 24 VDC
Power Consumption 2.8 W
Operating Duration Continuous
Tube Material Silicone
Tubing Inner Diameter（mm） 1.6 mm
Tubing Outer Diameter（mm） 3.2 mm
Notes

Note: Details such as specifications, etc. may be changed without notification.
