  • Pinch Valve - PWK Series [Tubing I.D.: 1.0 mm / O.D.: 3.0 mm] / 3-way]
  • Pinch Valve - PWK Series [Tubing I.D.: 1.0 mm / O.D.: 3.0 mm] / 3-way]

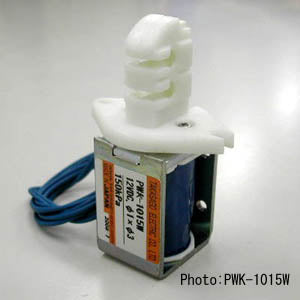

Pinch Valve - PWK Series [Tubing I.D.: 1.0 mm / O.D.: 3.0 mm] / 3-way]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView PWK Series [Tubing I.D.: 1.0 mm / O.D.: 3.0 mm] / 3-way] Drawing PDF

This is the PWK series, it is a PW series solenoid pinch valve with the tube holding feature. The actuator is open-framed and used for silicone tubing of I.D. 1.6 mm.

Please feel free to contact us for more details about this Solenoid Pinch Valve - the PW series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number PWK-1015W
Outer Dimensions W39.2 x L26 x H59 mm
Method Solenoid Pinch Valve
Type 3-way
IN Port Pressure 0~150 kPa
Ambient Temperature Range 0~50°C
Rated Voltage 12 or 24 VDC
Power Consumption 2.8 W
Operating Duration Continuous
Tube Material Silicone
Tubing Inner Diameter（mm） 1.0 mm
Tubing Outer Diameter（mm） 3.0 mm
Notes

Note: Details such as specifications, etc. may be changed without notification.
