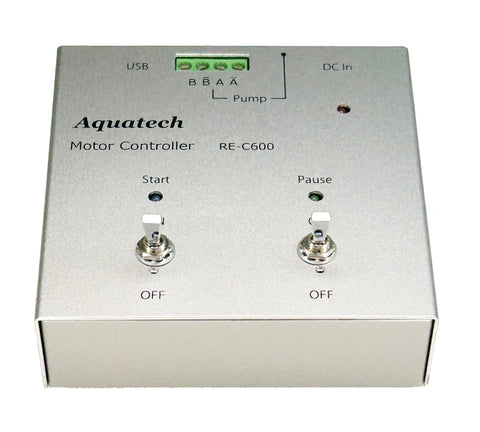

The RE-C600 is a programmable stepper motor controller that is compatible with the Ring Pump RP-TX, RP-HX, RP-QⅡB/C, and RP-QⅢB/C (Stepper) series. The RE-C600 provides efficient, programmable control for a variety of pump models and configurations, enhancing both performance and ease of use.

Ring Pump - RP-TX Series

Ring Pump - RP-HX Series

Ring Pump - RP-QⅡ/Ⅲ (Stepper) Series

1. The RE-C600 is designed to control a single pump at a time.
2. Customizable pump operation sequences can be programmed via a PC connected to the RE-C600.
3. The pump can be set to stop after a specified number of revolutions (up to 30), with the ability to deliver a precise discharge volume based on a fixed multiple of the pump's discharge per revolution.
   (Discharge volume data for one full rotation is provided with the pump.)
4. Program data for operation sequences can be stored directly in the RE-C600, enabling standalone operation without the need for a continuous PC connection.
5. The controller is compatible with both motor wiring with a connector and connector-less wiring, providing flexibility in setup.

Please feel free to get in touch with us for more details about this motor controller for the Ring Pump RP-TX/HX/QⅡ/Ⅲ (Stepper) series. For details on our other controllers, please visit our Controllers Matrix technical information page.

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Aquatech Co., Ltd provides product details and images.

EXAMPLE OF USE

CONNECTION

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS
