Ring Pump RP-Q, QX, QⅡ, QⅢ Series [Discharge Volume: 0.2 - 3.0mL/min]

Home
Pumps
Ring Pump RP-Q, QX Series [Discharge Volume: 0.2 - 1.1 mL/min]

Ring Pump RP-Q, QX Series [Discharge Volume: 0.2 - 1.1 mL/min]

$61.00

Variation

Quantity

Inquiry / Quotation

FEATURES / CHARACTERISTICS

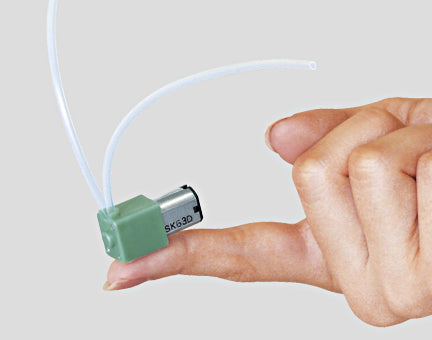

Compact Fingertip-Size Peristaltic Pump

Compact dimensions.
Discharge rates reaching up to 3.0 mL/min.
The pump is powered by a DC geared motor, ensuring low power consumption, and can optionally be powered by a 3VDC battery.
Tubing options of Silicone, TygonⓇ A-60-F or SWFT.
Pump head may be sterilized by autoclave or gamma ray.*

Please feel free to get in touch with us for more details about this option.

Note: Details such as specifications, etc., may be changed without notice.

^*: Silicone Tubing: Autoclavable one time at 121°C for 25 minutes. / Gamma ray sterilization with 25 kGy.
SWFT Tubing: Gamma-ray sterilization with 25 kGy. (Not Autoclavable)

P-Q CHARACTERISTICS

PQ Characteristics

RP-QII PQ Characteristics

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: It will change by the material or ID of the tube or the motor.

Note 3: PQ Characteristics is provided by Aquatech Co., Ltd.

MECHANISM OF THE RING PUMP

Mechanism of Ring Pump

This is a product from Aquatech Co., Ltd. Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Ring Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

VIDEOS OF THE RP-Q SERIES

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number

RP-Q & QX

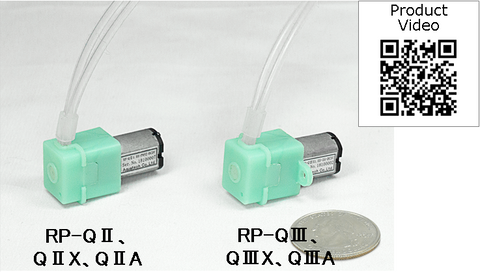

RP-QⅡ, QⅡX, & QⅡA
RP-QⅢ, QⅢX, & QⅢA

Motor

DC Geared Motor

Pump Method

Peristaltic Pump

Rated Voltage

3 VDC

Power Consumption

<0.4 W (RP-QⅡA/ＱⅢA:<0.5 W)

Tube Material

Silicone, Tygon® A-60-F, or SWFT

Self-Priming

Possible

Pumped Volume Adjustable Range

0.2~3.0 mL/min

Discharge Pressure

50 kPa

Notes

OTHER SPECIFICATIONS

Model Number	RP-Q & QX	RP-QⅡ, QⅡX, & QⅡA	RP-QⅢ, QⅢX, & QⅢA
Weight	11 g	13 g
Pump Head Replacement	Impossible	Possible
Mounting Flange	None (Optionally use Mounting Clip)		Equipped
Tube Material	Silicone (I.D. 1.5 × O.D. 2.5 mm), Tygon®A-60-F, SWFT (I.D. 1.2 × O.D. 2.5 mm)	Silicone (I.D. 1.5 × O.D. 2.5 mm), SWFT (I.D. 1.2 × O.D. 2.5mm)

LINEUP

RP-Q & QX Series

Model Number	Discharge Rate (mL/min)	Tube Material
RP-Q1.2N-P20Z-DC3V	0.20	Tygon®A-60-F
RP-Q1.2C-P20Z-DC3V	0.20	SWFT
RP-Q1.5S-P45Z-DC3V	0.45	Silicone
RP-QX1.2N-P50Z-DC3V	0.50	Tygon®A-60-F
RP-QX1.2C-P50Z-DC3V	0.50	SWFT
RP-QX1.5S-1Z-DC3V	1.10	Silicone

RP-QⅡ、QⅡX、QⅡA、QⅢ、QⅢX、& QⅢA Series（Pump Head Replaceable）

Model Number	Discharge Rate (mL/min)	Tube Material	Pump Head Model Number
RP-QⅡ1.2C-P45Z-DC3V RP-QⅢ1.2C-P45Z-DC3V	0.45	SWFT	RK-QII1.2C
RP-QⅡ1.5S-P90Z-DC3V RP-QⅢ1.5S-P90Z-DC3V	0.90	Silicone	RK-QII1.5S
RP-QⅡX1.2C-1P2Z-DC3V RP-QⅢX1.2C-1P2Z-DC3V	1.20	SWFT	RK-QII1.2C
RP-QⅡX1.5S-2P2Z-DC3V RP-QⅢX1.5S-2P2Z-DC3V	2.20	Silicone	RK-QII1.5S
RP-QⅡA1.5S-3Z-DC3V RP-QⅢA1.5S-3Z-DC3V	3.00	Silicone	RK-QII1.5S

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Tygon® A-60-F/SWFT: Product of Saint-Gobain SA.
