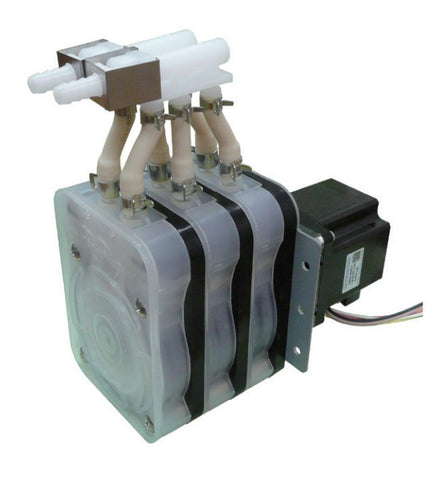

1. The RP-3S series is a high-performance pump designed for long service life and high discharge rates, achieved by connecting three RP-S pump heads and driving them with a stepper motor.
2. By consolidating the three IN and three OUT lines into single inputs and outputs, pulsations in the discharge flow are significantly reduced, offering smoother performance compared to the RP-2S series, which utilizes dual pump heads. (Note: the IN and OUT lines are consolidated into single lines for shipping purposes.)
3. Each of the three pump heads can simultaneously suction different liquids, enabling the delivery of three distinct liquids at once.
4. The RP-3S is powered by a stepper motor. To operate the motor, a separate controller or driver is required (sold separately).

Note: Details such as specifications, etc., may be changed without notice.

CONTROLLER

The motor can be controlled by connecting it with a lead wire. Using the panel buttons, you can adjust various settings including rotation speed, direction, start/stop function, motor current, and acceleration/deceleration times. External signals can be used to control motor speed, rotation direction, and the start/stop function. A DC24V 3A power supply is required. Please ensure you have a suitable DC power supply, AC adapter, or similar equipment. For more details, please feel free to contact us.

Note: Details such as specifications, etc., may be changed without notice.

DRIVER BOARD

	This driver board connects the motor, power supply, and external control signals, allowing the motor to be controlled through external inputs. You will need to provide the equipment to send the control signals. A DC24V 3A power supply is required. Please ensure you have a suitable DC power supply, AC adapter, or similar equipment. For more details, please feel free to contact us.

Note: Details such as specifications, etc., may be changed without notice.

MECHANISM OF THE RING PUMP

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

SPECIFICATIONS

Swipe left to see the remaining contents
