Ring Pump RP-TX Series [Discharge Rate: 0.03 - 40 μL/min]

Ring Pump RP-TX Series [Discharge Rate: 0.03 - 40 μL/min]

$325.00

Variation

Quantity

Inquiry / Quotation

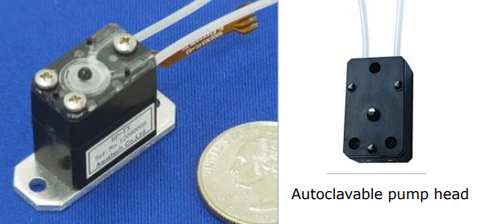

FEATURES / CHARACTERISTICS

This pump features the world's lowest discharge rate class for a peristaltic pump on the market: 0.03 ~ 40 μL/min.
The pump head is replaceable and comes complete with tubing for ease of use.
Compact dimensions of 33 x 12 x 22.8 mm.

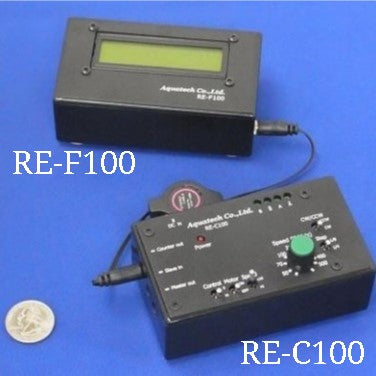

An intuitive controller is available separately. Contact us for more details about the controller and its compatibility with RP-TX.
Controllers for RP-TX

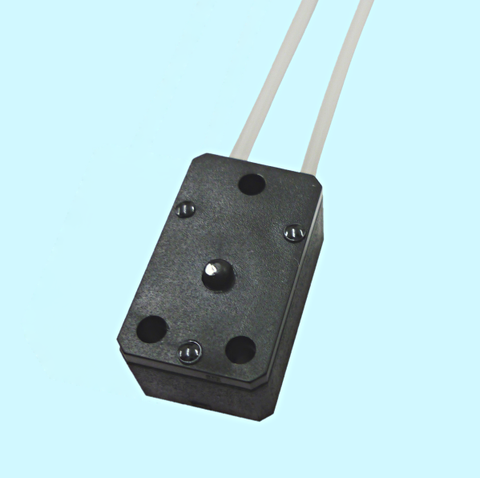

Autoclavable pump heads are also available (sold separately). Reach out for more information or to place an order.
Replaceable and Autoclavable Pump Heads

Note: Details such as specifications, etc., may be changed without notice.

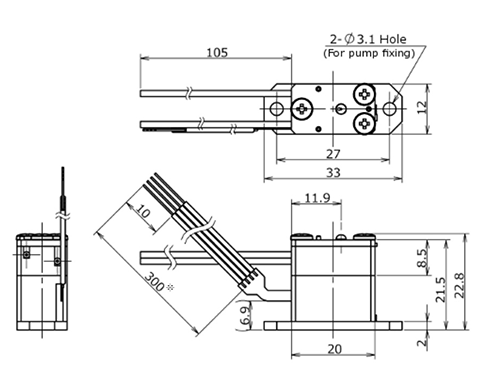

DIMENSIONS

RP-TX Dimensions

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Wiring lengths of 1 mm and 2 mm are available.

MECHANISM OF THE RING PUMP

Mechanism of Ring Pump

Aquatech Co., Ltd. logo

For more information:

Mechanism of the Micro Peristaltic Pump

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: Visual diagram above is from Aquatech Co., Ltd.

REPLACEMENT PUMP HEADS

	Silicone	PharMed® BPT
Standard	AR-TBS0.5X1.5-K	AR-TBF0.5X1.5-K
Autoclave Sterilizable	AR-TBS0.5X1.5-K5	N/A

Note: Details such as specifications, etc., may be changed without notice.

SPECIFICATIONS

Swipe left to see the remaining contents

Outer Dimensions

33 x 12 x 21.5 mm

Motor

2-Phase Bipolar-Type Stepper Motor

Pump Method

Peristaltic Pump

Type

Miniature Peristaltic Pump

Ambient Temperature Range

5–45˚C (May be used in Incubators *2)

Rated Voltage

3 VDC

Power Consumption

350 mW

Tube Material

Silicone

Tubing Inner Diameter（mm）

0.5 mm

Tubing Outer Diameter（mm）

1.5 mm

Self-Priming

Possible

Flow Rate Range

0.03~40 μL/min ±20%

Discharge Pressure

≥30 kPa

Weight

Approximately 13.5 g

Pump Head Replacement

Possible

Notes

Model Number	Tubing			Wire Length / Connector^*	Autoclavable Pump Head	Model # of Pump Head	Compatible Controllers
Model Number	Material	I.D.	O.D.	Wire Length / Connector^*	Autoclavable Pump Head	Model # of Pump Head	Compatible Controllers
RP-TXP5S- P04A-DC3VS	Silicone	0.5 mm	1.5 mm	30 cm Without Connector	No	AR-TBS 0.5X1.5-K	RE-C100, RE-C600 (Without Connector)
RP-TXP5S- P04L-DC3VS				1 m Without Connector	Yes	AR-TBS 0.5X1.5-K5	RE-C100, RE-C600 (Without Connector)
RP-TXP5S- P04Q-DC3VS				50 cm With Connector	No	AR-TBS 0.5X1.5-K	RE-C500/C501, RE-C600 (With Connector)
RP-TXP5S- P04R-DC3VS				2 m With Connector	No	AR-TBS 0.5X1.5-K
RP-TXP5S- P04S-DC3VS				2 m With Connector	Yes	AR-TBS 0.5X1.5-K5

^*: The pump with a connector is required for use with the motor controller RE-C500/C501.

^*: The pump without connectors can be used with RE-C100.

^*: RE-C600 can be used with or without a connector.

^*: PharMed^® BPT is a trademark of Saint-Gobain Performance Plastics.

Note: Details such as specifications, etc., may be changed without notice.
