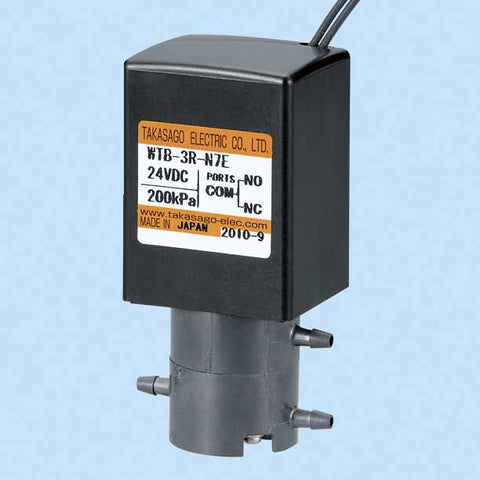

Diaphragm Valve - WTB Series [3-way / Orifice: 1.6 mm / PEEK Body]

$0.00

Variation
Quantity
Inquiry / Quotation

FEATURES / CHARACTERISTICS

pdfpdfView WTB Series [3-way / Orifice: 1.6 mm / PEEK Body] Drawing PDF

For the purpose of cost reduction, this diaphragm valve adopts a open framed solenoid, which is covered by a plastic case. These WTB series pumps have a variety of standard materials that are available for the valve body are PTFE, PEEK, PPS, FKM, and FFKM. Please feel free to contact us for more details of this latching solenoid diaphragm isolation valve, the WTB series.

Note: Details such as specifications, etc. may be changed without notification.

SPECIFICATIONS

Swipe left to see the remaining contents

Model Number WTB-3K-1/8F1
Outer Dimensions 35 x 20 x 72.4 mm
Method Solenoid Diaphragm Isolation Valve
Type 3-way
Port Connection Rc1/8
Orifice（mm） 1.6 mm
IN Port Pressure -50~200 kPa
OUT Port Pressure (NC) 0~50 kPa
OUT Port Pressure (NO) 0~50 kPa
Fluid Temperature Range 5~50°C
Ambient Temperature Range 5~40°C
Rated Voltage 12 or 24 VDC
Power Consumption 3.4 W
Operating Duration Continuous
Body Material PEEK
Seal Material FKM
Other Wetted Materials PTFE or FKM
Notes

Note: Details such as specifications, etc. may be changed without notification.
